The German Panzerkampfwagen V Panther was born out of the shock experienced by German forces after encountering the Soviet T-34 medium tank and KV-1 heavy tank.

Assuming, rather arrogantly, that Soviet tank design hadn’t progressed further than 1930s technology, just days into Operation Barbarossa (German invasion of the Soviet Union), they realised their mistake. The Soviet’s tanks, while crudely made, were both mobile and heavily armored with powerful guns. The KV-1 was virtually impenetrable to any anti tank gun short of the 88 mm at that time in the war.

The KV-1 and T-34 together. Photo by Alan Wilson CC BY-SA 2.0
The KV-1 and T-34 together. Photo by Alan Wilson CC BY-SA 2.0

However it was the T-34 that captured the German’s attention the most. This tank carried good armor and a good gun, with decent speed and good cross country performance, all in a sub-30 ton package. Begrudgingly accepting their Panzer IIIs and IVs were outclassed by these tanks, the Germans immediately set about creating a counter.

A competition between Daimler-Benz and MAN saw the VK30.01(D) and VK30.02(M) prototypes go head to head, with MAN winning out in the end for a few reasons, most important of which was a larger turret ring. The VK30.02, with a few advisory changes was given a rushed approval for production as the Panzerkampfwagen V Panther Ausf.D. This rush into service would leave the Panther with un-ironed issues that would plague the tank for the remainder of the war.

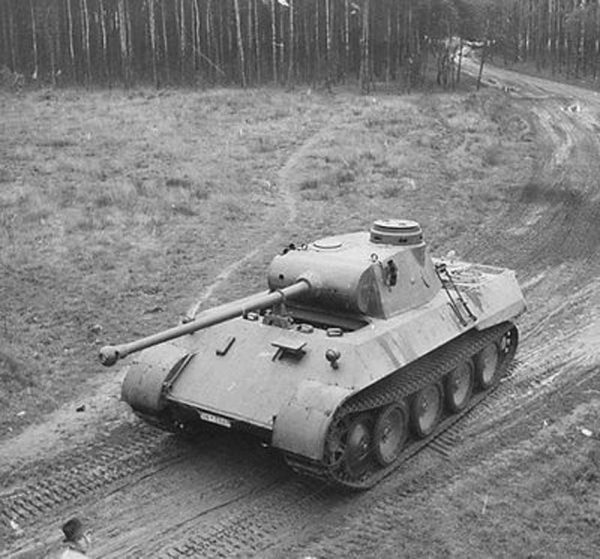

The VK30.02(M) prototype during trials. Photo Source
The VK30.02(M) prototype during trials. Photo Source

Serial production of the Panther ran from January 1943 to April 1945.  In addition to MAN, other companies including Henschel, Demag and Daimler-Benz were involved in the production of the Panther. Up to 136 organizations and manufacturers took part in total.

The Panther was originally planned to be armed with 60 mm of frontal armor, but while in the prototype stage Adolf Hitler requested a change to 80 mm instead. This meant the Panther had 80 mm of upper glacis armor angled at 55 degrees, 40 mm of side armor angled at 40 degrees, and 40 mm of rear armor at 30 degrees. The turret front was 100 mm thick, and the sides and rear were 45 mm thick angled between 25 and 30 degrees. All of this armor was face hardened for the best protection.

This gave the tank a weight of 49 tons. The Germans classed this as a medium tank, but the Allies classed it as a heavy tank.

While less physical armor than the Tiger I, the Panther’s front plate if shot dead on had an effective thickness of 140 mm, 40 mm more than the Tiger I’s flat 100 mm frontal armor.

Inside the Panther’s crew consisted of five people.

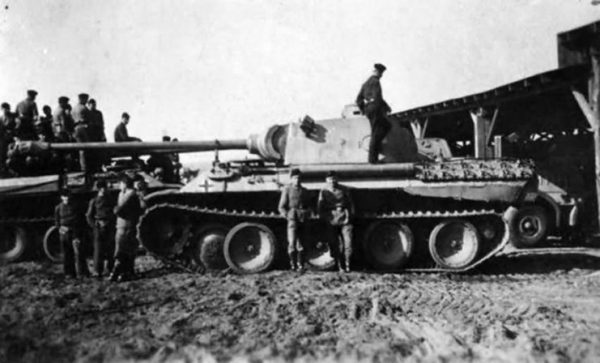

Panther tank Ostpreussen 1944
Panther tank Ostpreussen 1944

The Panther carried the 75 mm KwK 42 gun, a powerful weapon with great velocity. The barrel length of 70 times the calibre helped with this. The standard Panther Ausf.D could hold 79 rounds for the 75 mm, while the Ausf.G could take up to 82. A 7.92 mm MG 34 machine was mounted in the hull to be used by the radio operator, and another MG 34 was mounted coaxially next to the main gun.

The first 250 Panthers used the 21.35-litre Maybach HL 210 P30 petrol V12 engine that produced 650 hp, the same engine used in the early Tiger Is. Also like the Tiger, this engine would later be replaced by the more powerful and reliable Maybach HL 230 V12 petrol engine, which produced 700 hp. This rear mounted engine sent power through a drive shaft protected by a 250×250 metal cover to the transmission in the front of the hull.

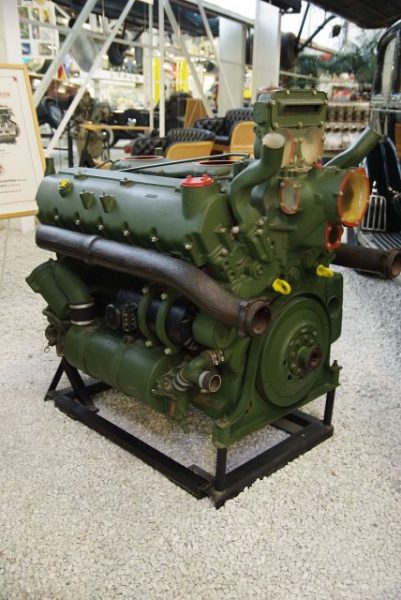

The Maybach HL230 in Sinsheim Auto & Technik Museum an upgraded version of the HL 210. By Bilderling CC BY-SA 3.0
The Maybach HL230 in Sinsheim Auto & Technik Museum an upgraded version of the HL 210. By Bilderling CC BY-SA 3.0

The Panther had its first taste of combat at the Battle of Kursk, the biggest tank battle in history that involved over 6,000 tanks. From the very start of the Panther’s development, it was known that German industry could never match the Soviets in quantity, so the Panther was to rely on quality. At the Battle of Kursk the Panthers saw a similar fate to most other big German tanks during the war; they were superior machines to their enemy’s, but in the end would succumb to the overwhelming numerical superiority of the Soviet tank forces.

The early versions of the tank were severely unreliable. At the start of the Battle of Kursk, there were 184 Panthers in service. Just two days later there were only 40. Many of these were down to mechanical issues not solved due to the rush into production.  In total, from July 5, 1943, to April 10, 1945, 5,629 Panther tanks would be lost in combat operations.

There were a few design flaws too. The curved gun mantlet had a deadly tendency to deflect rounds down into the 16 mm hull roof, and kill or injure the driver or radio operator, similar to the early Tiger II turret. The Panthers after the Ausf.G model solved this by adding a flat ‘chin’ to the bottom of the turret, although this improvement was never universal, as even tanks produced at the end of the war could still have the curved mantlets.

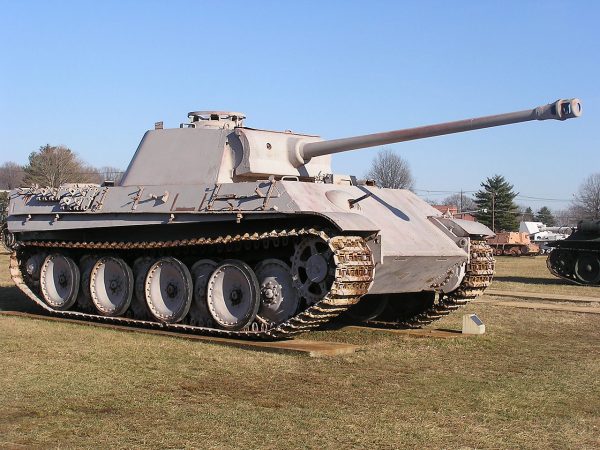

This Panther Ausf.G has the improved ‘chin’ on the gun mantlet. Photo by Raymond Douglas Veydt CC BY-SA 3.0
This Panther Ausf.G has the improved ‘chin’ on the gun mantlet. Photo by Raymond Douglas Veydt CC BY-SA 3.0

Later versions like this would solve many of the Panthers teething problems, where it would prove to be a formidable tank, but unfortunately it was too late.

Panthers would continue in service in many variants for the rest of the war, even helping to defend Berlin. Compared to the tank it was designed to beat, the T-34, it was quite clear the Panther did its job. However, like all of the heavier German tanks, the Panther was plagued with reliability issues mainly related to the final drives and engine. The interior was a tight space to work in, and from many angles the crew had poor visibility of the immediate outside of the tank.

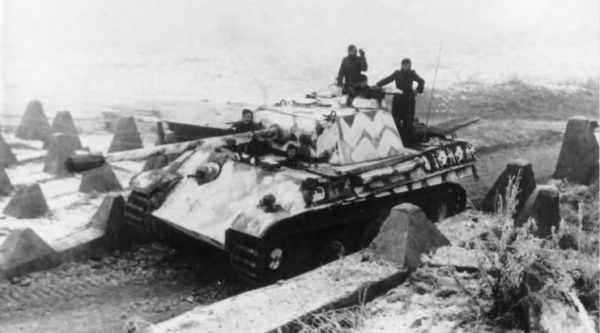

German Panther G in Winter Camouflage 1944
German Panther G in Winter Camouflage 1944

Updated versions of the Panther were still being planned by the wars end, including the Ausf.F which would have featured a radically different turret design. After the end of WWII, many Panthers served in the armies of Hungary, Romania, France, and Czechoslovakia. Currently, surviving Panthers can be seen on display in many military museums.

Overall the Panther mounted good armor even by later war standards, a deadly and accurate gun, and in the case of the later, more reliable versions, it had good mobility too. Its hard to state the best tank of the war, as it can be judged by many metrics, but if measuring by balance of the three key factors of a tanks design; mobility firepower and armor, and one can cast aside its reliability issues, the Panther is perhaps the strongest contender for the best tank of the war.

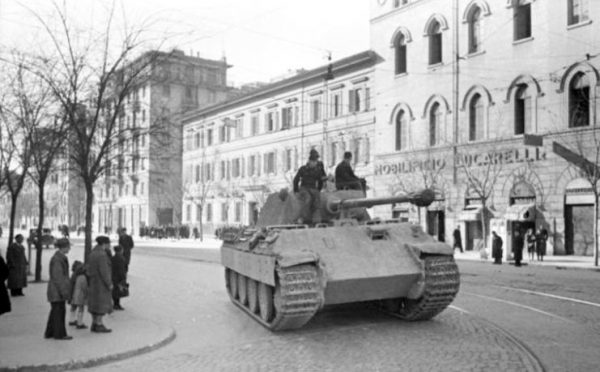

Rome, 1944 – German panzers roll through the streets. Bundesarchiv – CC-BY SA 3.0
Rome, 1944 – German panzers roll through the streets. Bundesarchiv – CC-BY SA 3.0

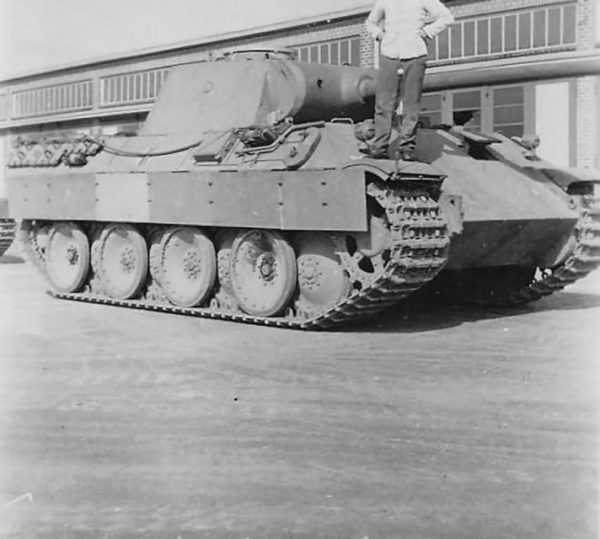

Panzer V Panther Ausf D Medium Tank
Panzer V Panther Ausf D Medium Tank

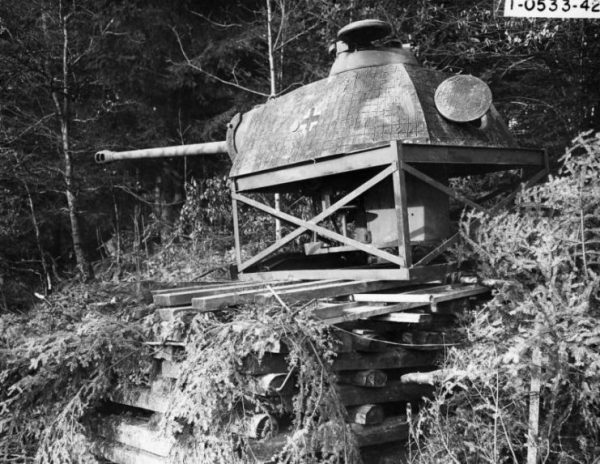

Panther turret as a pillbox
Panther turret as a pillbox

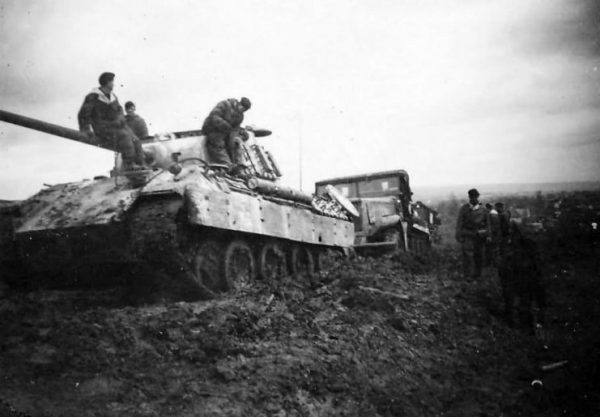

Panther tank in mud
Panther tank in mud

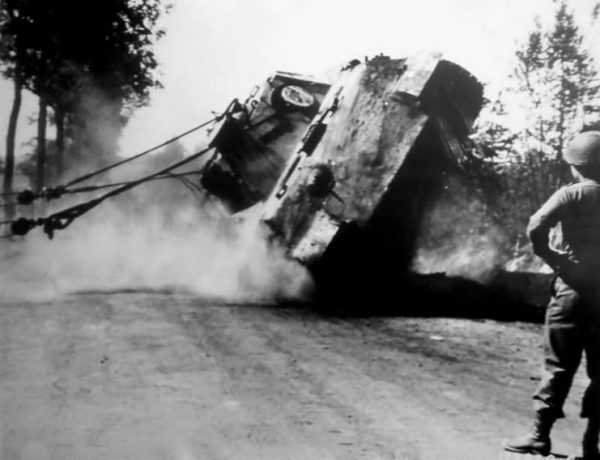

Panther tank France 1944
Panther tank France 1944

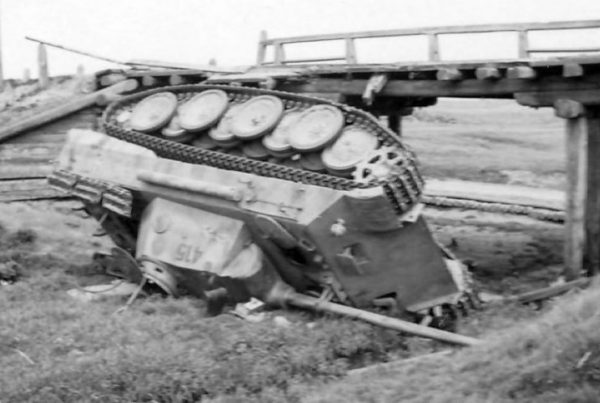

Panther number 415
Panther number 415

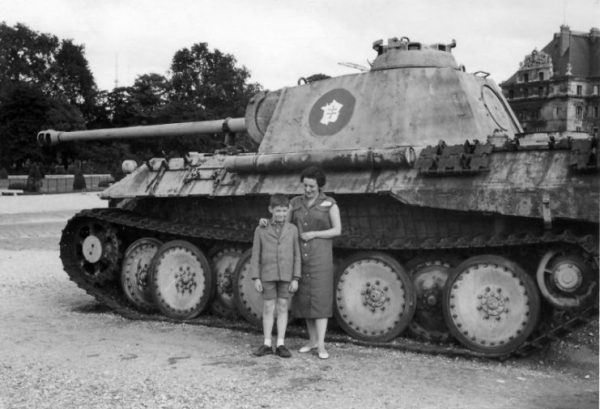

Panther in France.
Panther in France.



Panther Cologne March 1945 Duel at the Cathedral
Panther Cologne March 1945 Duel at the Cathedral

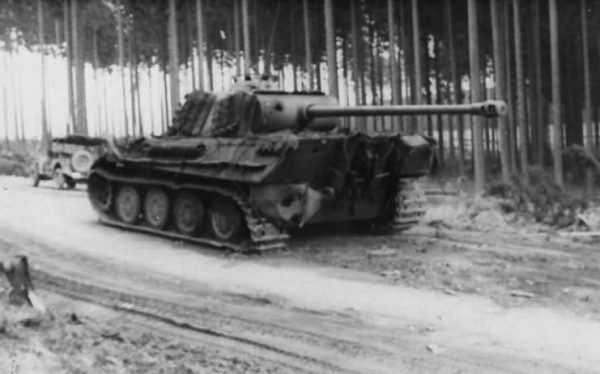

Panther ausf G with steel wheels
Panther ausf G with steel wheels

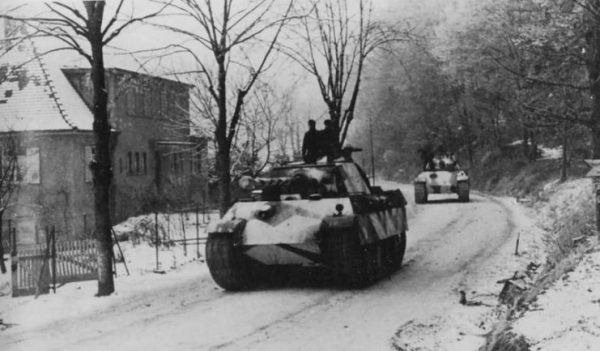

Panther Ausf G tanks of 10th SS Panzer Division Frundsberg winter camo Alsace December 1944
Panther Ausf G tanks of 10th SS Panzer Division Frundsberg winter camo Alsace December 1944

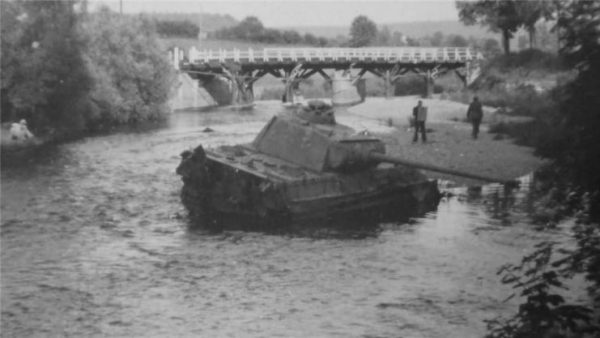

Panther Ausf G in river
Panther Ausf G in river

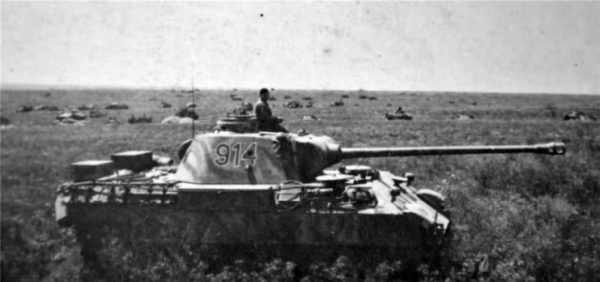

Panther Ausf D tank number 914 1943
Panther Ausf D tank number 914 1943

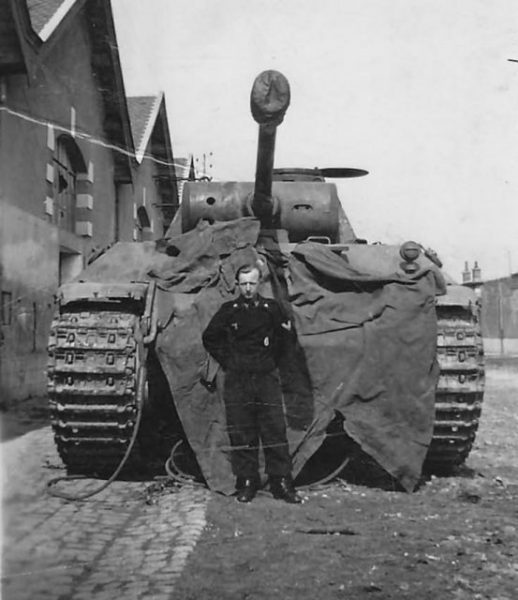

Panther Ausf D 1944 and crew member
Panther Ausf D 1944 and crew member

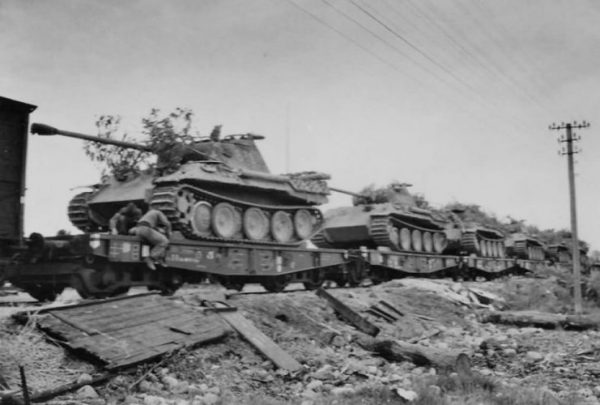

Ausf A of the 5th SS Panzer Division Wiking Bahntransport Summer 1944
Ausf A of the 5th SS Panzer Division Wiking Bahntransport Summer 1944

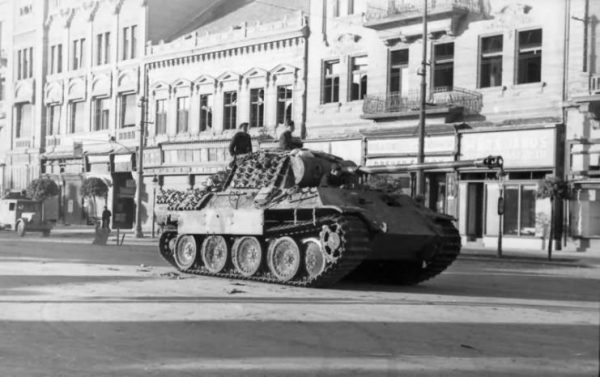

Hungary Panzer V
Hungary Panzer V

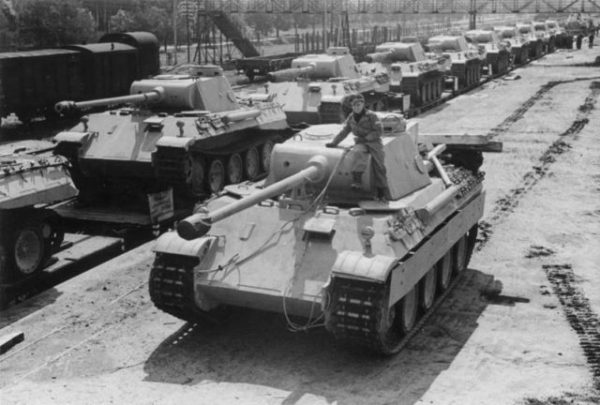

German Panzer V tank in 1943
German Panzer V tank in 1943

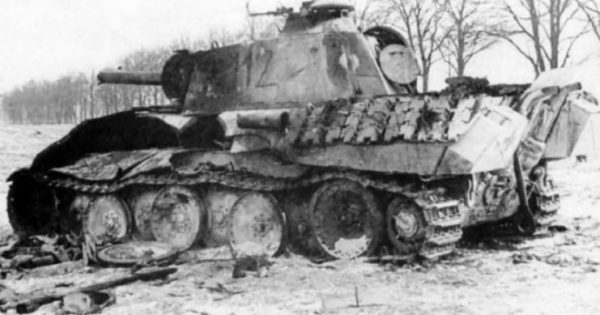

Destroyed Panther Ausf. A number 112 of the Fallschirm-Panzergrenadier Division 2 Hermann Göring. East Prussia February 1945
Destroyed Panther Ausf. A number 112 of the Fallschirm-Panzergrenadier Division 2 Hermann Göring. East Prussia February 1945

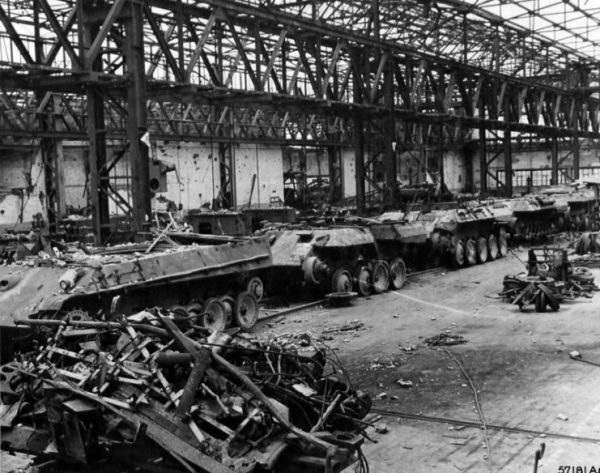

Aschaffenburg Tank and Submarine Plant
Aschaffenburg Tank and Submarine Plant

Another Article From Us: The Mighty Maus – at 207 Tons it is the Heaviest Tank Ever Built

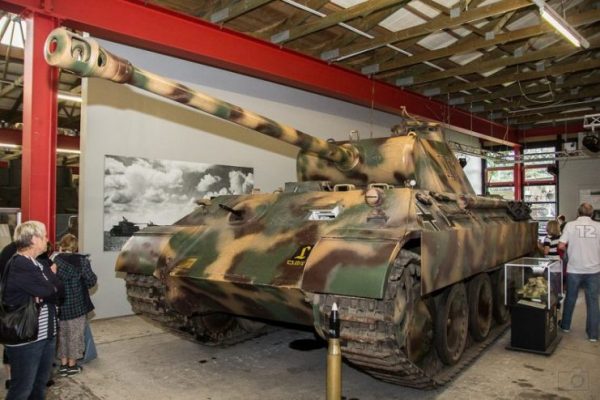

The Panther was intended to counter the Soviet T-34 Tanks.Photo Thorsten Hansen CC BY-ND 2.0
